Description
Alcohol detector JLL3
| Project | Indicators and parameters |
| Sensor | High precision sensor |
| Measurement mode | Rapid screening |
| measuring range | 0-400mg/100ml |
| Operating temperature range | -5℃ ~ 45℃ |
| Storage temperature range | -30℃ ~ 70℃ |
| Environmental pressure | 600 ~ 1400hPa |
| Ambient temperature | 20~ 98%r.h. |
| flash lamp | Flash LED |
| Electronic whistle | Whistling sound |
| Voice Announcements | Test voice broadcast (optional) |
| Battery | Lithium ion rechargeable battery, 3.7V/3000mAh |
| Display | 1.4 inch LCD curved screen design |
| Continuous measurement time | More than 10 hours |
| Host size | L (377) x OD (46) mm |
| Instrument weight | About 240 g (including battery) |
| Test record | 3000 |
| Test distance | 3-5 cm test |
| Indication time | <5s |
| Return-to-zero-time | <10s |
Alcohol detector JLL3
Alcohol detector JLL3
Alcohol detector JLL3
Alcohol detector JLL3
Alcohol detector JLL3
Alcohol detector JLL3

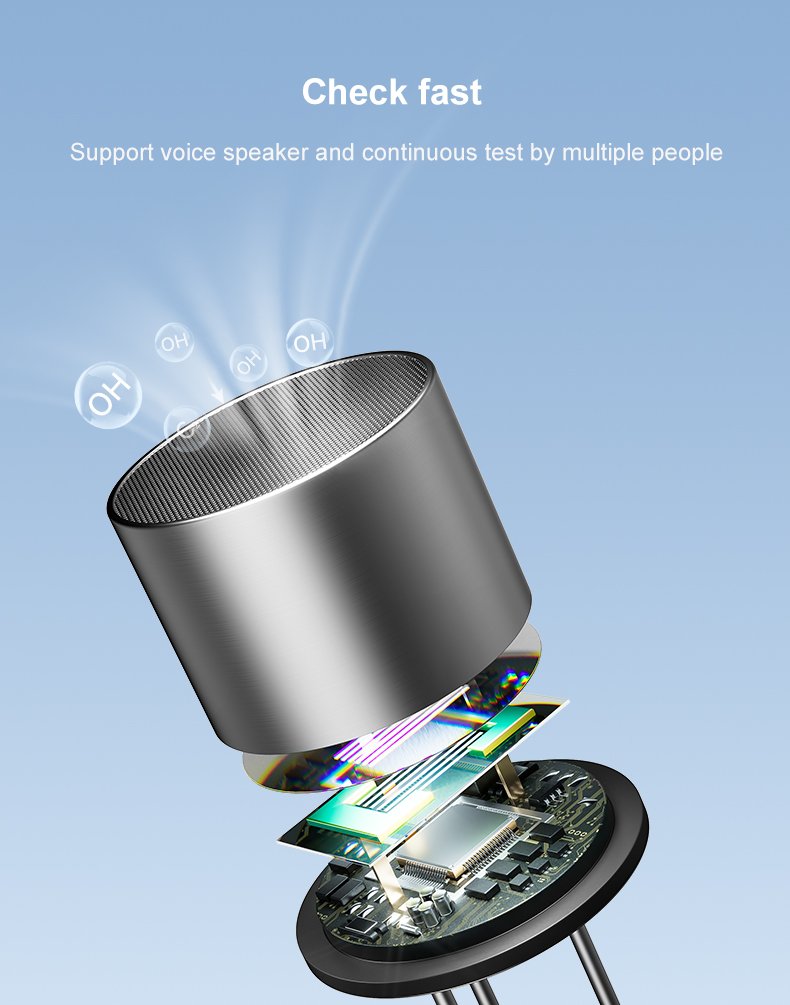

1.Detection probe: high-precision sensor
2.Key function: The keys are accompanied by sound prompts, which are intuitive to use.

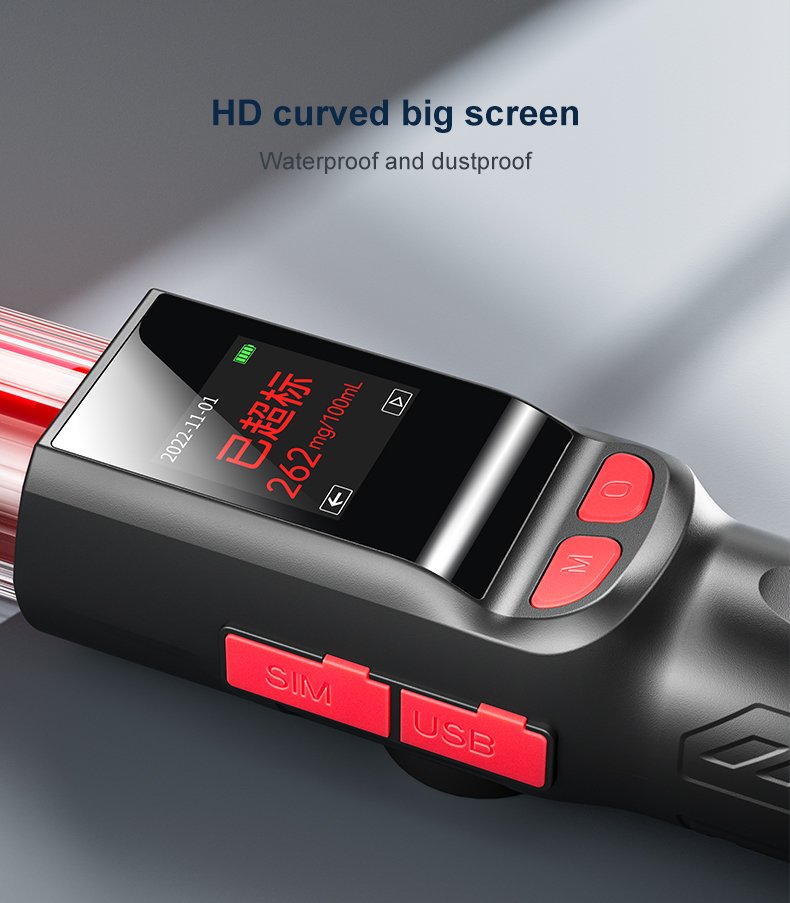

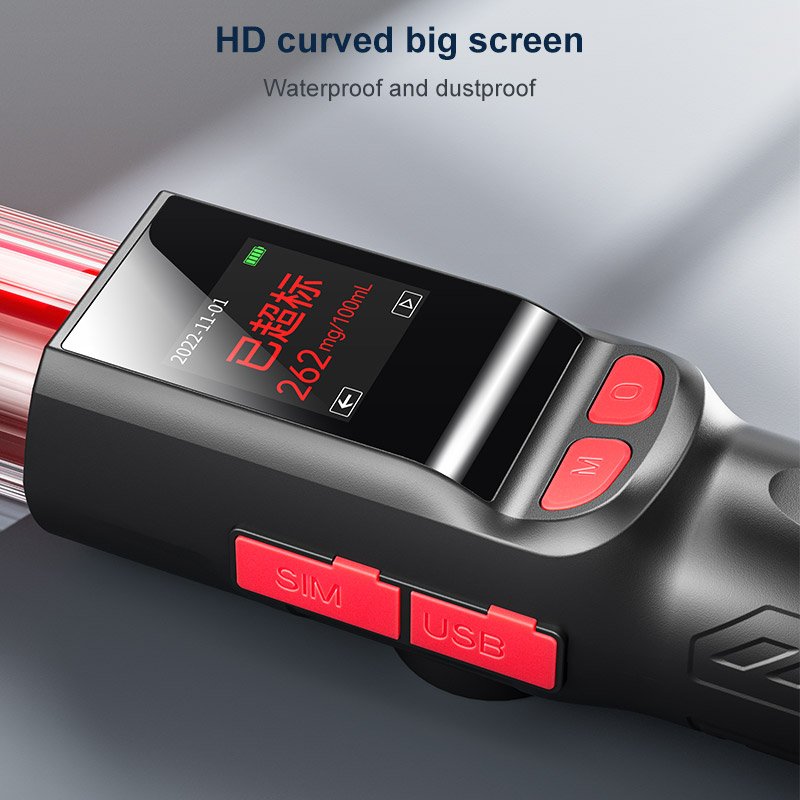

3.Screen display: 1.4 inch LCD
4.Electronic whistle function: make the traffic baton more flexible.
5.Waterproof function: All buttons and USB interfaces are designed with simple and applicable waterproof design.
6.Vibration motor prompt function: when the test result is lower than the national standard, the vibration motor does not vibrate and the indicator does not work; When the test result is higher than the national standard, the vibration motor will give a vibration prompt and the indicator light will flash, so that the tester and the tested can know whether there is alcohol in the test result in time.
7.Anti slip grip: newly upgraded anti slip grip feels more comfortable Voice broadcast: test voice prompt (optional)
8.Sampling: concave sampling port design is adopted, with functions of guiding and collecting gas.

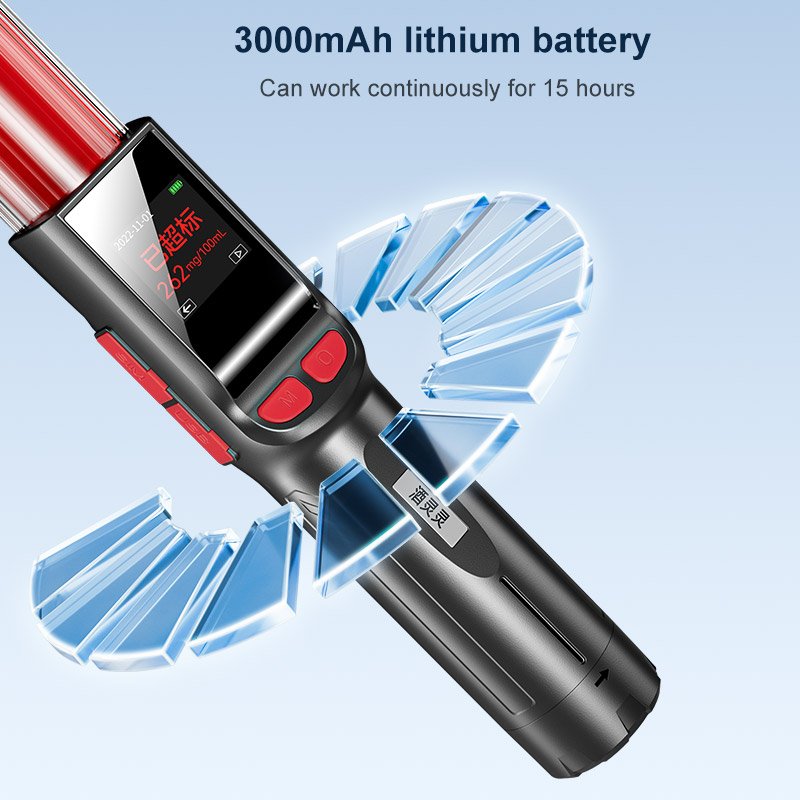

9.Charging interface: USB Android charging interface Power supply: energy-saving design. The machine uses rechargeable lithium ion battery with a capacity of 3000mAh and can work continuously for more than 10 hours.
10.The external dimensions and weight of the equipment shall conform to the ergonomic bar design, and the length shall not exceed 400mm, which is convenient for carrying.
11.There are waterproof and dust-proof materials at the air inlet to prevent water and dust particles from entering the core element (high-precision alcohol sensor) for alcohol measurement, which increases the usability and service life of the instrument.
